Euro 3 HOWO 6x4 10m3 371hp Cement Mixer Truck Sinotruk Used

Ask Lasest Price
Brand Name :	SINOTRUK
Model Number :	HOWO Mixer Truck
Certification :	CE, ISO
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	1000 units/month
Delivery Time :	10-15 days

Add to Cart

Product Details
Company Profile

Euro 3 HOWO 6x4 10m3 371hp Cement Mixer Truck Sinotruk Used

Sinotruk Used Euro 3 HOWO 6x4 10m3 371hp Cement Mixer Truck
The used mixer trucks we sell can be customized according to customer requirements.For example, colors, tires, batteries, cab, fuel tank,We have 10 rounds and 12 rounds, 8m3, 10m3, 12m3, 14m3, different capacities for your choice.welcome to contact us get good price and High quality mixer truck.
Specification

Concrete mixing capacity		8cbm	10cbm	12cbm	14cbm
Cabin		HW76, with 1 sleeper & A/C
Vehicle Main Dimension (L x W x H) mm		9400x2500x3920	9600x2500x3950	9850x2525x3950	10500×2496×3980
Wheel base (mm)		3625+1350	3825+1350	4025+1350	1800+3200+1350
Wheel track (front/rear) (mm)		1500/2725	1500/2365	1550/2915	1500/2380
Approach / Departure angle(°)		16/15	19/22	25/13	16/19
Tare Weight		13700	14500	15300	16500
Loading Capacity		27300	26500	25700	33500
Front axles		HF9 1x9000			HF9 2x9000
Rear axles		HC16 2x16000

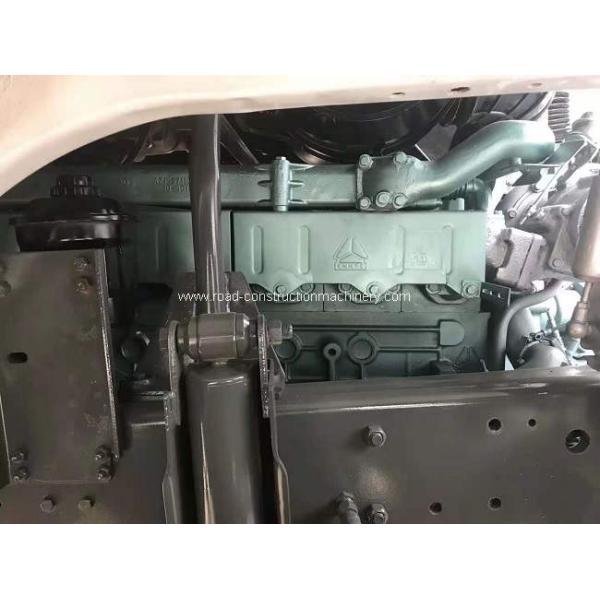

Engine	Brand	WEICHAI
	Model	WD615.47
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo- charging and inter-cooling
	Horse Power	371hp
	Emission Standard	Euro II
Gearbox		HW19710 , 10 forwards & 2 reverse
Clutch		Reinforced diaphragm clutch, diameter 430mm
Steering Gear		ZF 8118,power steering, hydraulic steering with power assistance
Fuel tank (L)		300
Tire		12R22.5 tubeless tire , 10 pieces with one spare total 11 pieces.
Brakes		Service brake: dual circuit compressed air brakeParking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Mixing tank material		Q345
Thickness for end plate		8mm
Thickness for mixer body		6mm
Feeding Speed (m3)		≥3
Discharging Speed (≥m3)		≥2
Leftover Rate		Nearly Zero
Max Rotating Speed (r/min)		14---16
Driving System	Speed Reducer	Italy brand PMP
	Hydraulic Pump	Italy brand PMP
	Hydraulic Motor	Italy brand PMP
Water Tank Capacity (L)		400
